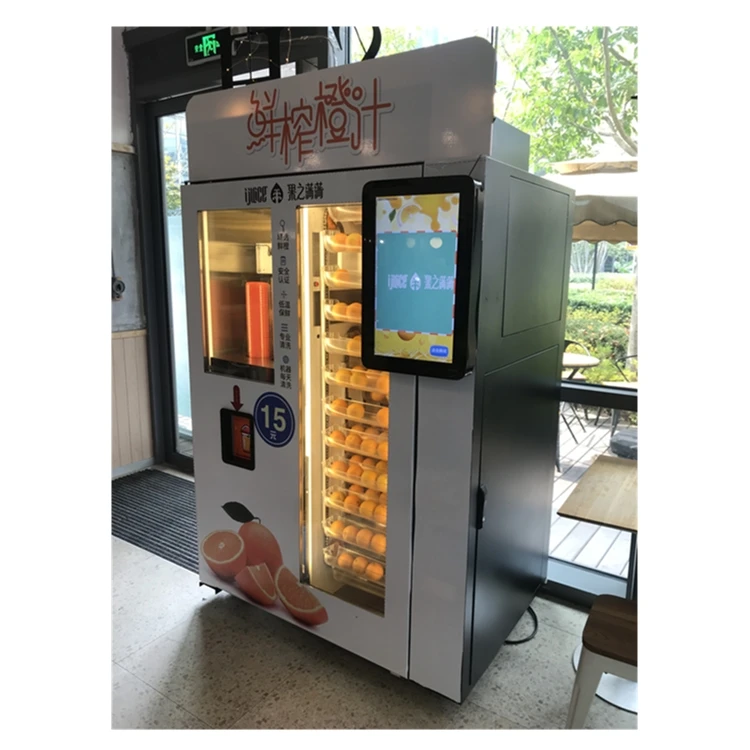

All new designed orange juicer vending machine automatic

  • 1 - 4 Sets
    $5,790.00
  • >=5 Sets
    $5,380.00
Model Number:
3000MAX-L
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Processing:
Juice EXTRACTOR, Juice EXTRACTOR
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Tourist attraction
After Warranty Service:
Video technical support, Online support
Local Service Location:
None
Showroom Location:
None
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
New saier
Processing Types:
orange
Power:
0.3KW
Voltage:
230-115V/50-60HZ
Weight:
450KG
Dimension(L*W*H):
1330*930*2100 mm
Certification:
CE/CB/ETL
Warranty:
1 Year
After-sales Service Provided:
Online support
Name of the machine:
3000MAX-L automatic orange juice machine
language:
all main languages availabe
Juice rate:
60~70%
Color:
Customers' Requirements
chiller temprature:
0~ 5℃ Direct cooling(full machine cooling)
Storage quantity of oranges:
335oranges/67 orange sliders(5oranges per slider)
Body material:
stainless steel
Usage:
Commercial orange juice vending machine
cup size:
12OZ(350ml +/-) top dia. 9cm, height:9-13cm
basic payment method:
cash acceptor(itl), coins for changes
Supply Ability
Supply Ability:
20 Set/Sets per Month
Packaging & Delivery
Packaging Details
non-fumigation wooden pallet and carton with protection foam
orange juicer vending machine orange juicer vending machine automatic fresh orange juice vending machine
Port
shanghai
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
Video Description
Product Description


freshly squeezed orange juice vending machine

Parameter

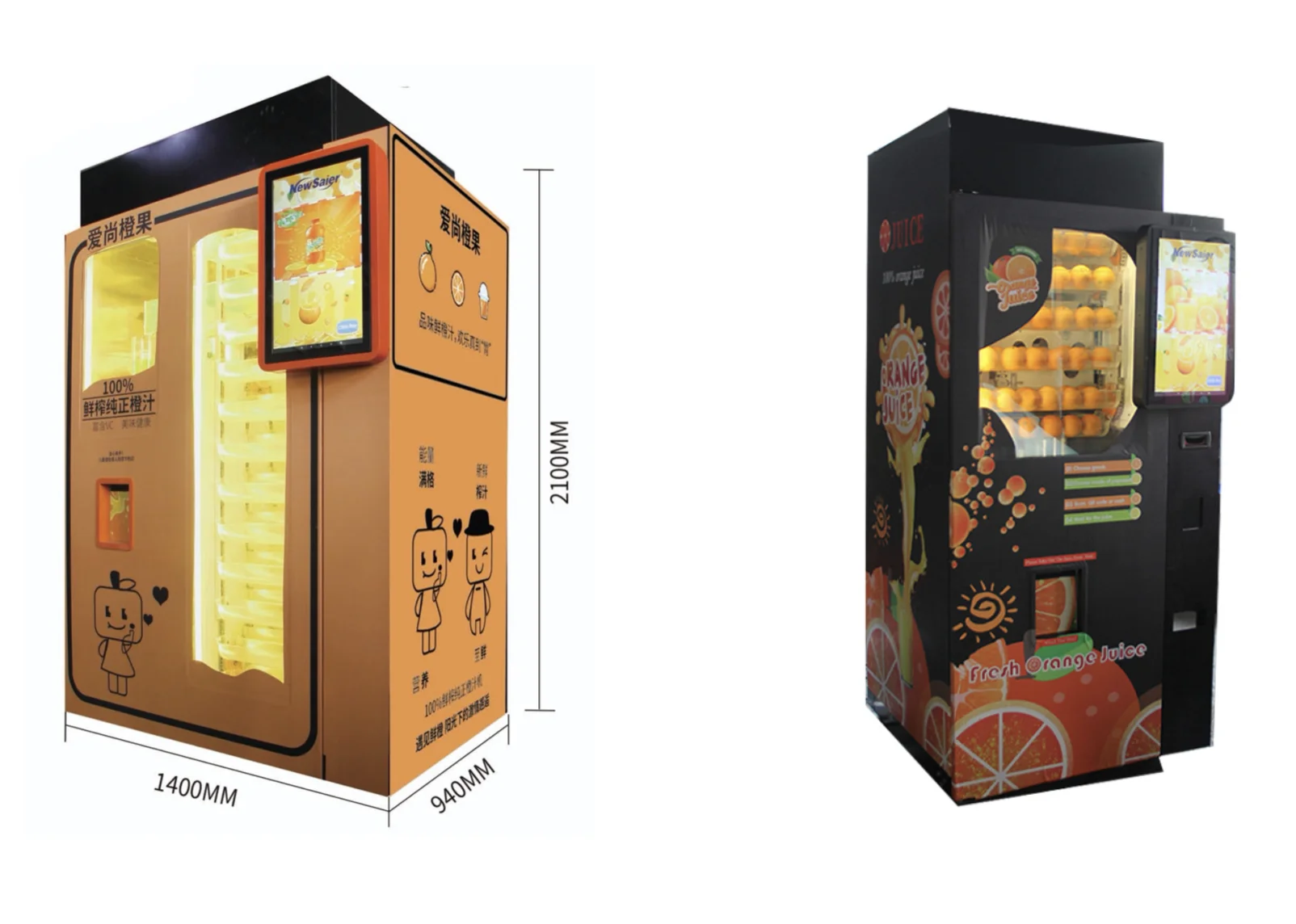

Model
NS-3000MAX-L
NS-3000MAX-S
Dimension(m)
2100*1400*960mm
2100*900*840mm
Touch Screen Shape and Size
21.6inch
21.6inch
Variety of fruits
oranges, pears ,citrus and pomegranate
oranges, pears ,citrus and pomegranate
Cupping unit
cover-lid type
cover-lid type
StrawBox unit
straw on the lid
straw on the lid
Pressing and juice rate
juice rate:50%~60%,orange peel will not be pressed
juice rate:40%~45%,orange peel will not be pressed
Automatic cleaning unit
Standard automatic cleaning system/Manually cleaning system
Manually cleaning system
Fruit loading unit
Loading capacity: about 335 oranges. can produce more than 60 cups
Loading capacity: about 165 oranges.can produce more than 30 cups
FallingCup unit
Rotating drop cup unit
can produce more than 80 cups
Measurement unit
Support:"Juice level mode" and "orange count mode"
Support:"Juice level mode" and "orange count mode"
Lock unit
Main cabinet electric lock
Main cabinet electric lock
Refrigeration unit
High-performance air-conditioning refrigeration system, adjustable temperature(0-5)
High-performance air-conditioning refrigeration system, adjustable temperature(0-5)
Supported Payment Mode
Standard configuration: banknote cash reciever and coins payout device for most countries,Optional banknote changer. QrCode
payments:Alipay, WeChat,Can customize the local QR code payment method for customers.
Support most European and North American national credit cards and some Asian, South American ,Australian and African countries
credit card payments. Please contact customer service for details.
Standard configuration: banknote cash reciever and coins payout device for most countries,Optional banknote changer. QrCode
payments:Alipay, WeChat,Can customize the local QR code payment method for customers.
Support most European and North American national credit cards and some Asian, South American ,Australian and African countries
credit card payments. Please contact customer service for details.
Control unit and network unit
Android  and 4G router
Android and 4G router
Sterilization unit
Ozone generator
Ozone generator
Power supply
Support AC220~240V or AC110~120V
Support AC220~240V or AC110~120V
Power consumption
Average power consumption 300W / peak power consumption 1500W
Average power consumption 300W / peak power consumption 1050W
Net Weight(KG)
500KG
350KG
Profit Analysis Sheet.
Material cost
Operating cost





cost analysis(per cup)
Each cup takes 4-5 oranges(500-600g)
cup and straw: 0.1USD /set
oranges cost(average): 500g/1 USD
zone rent,running cost,electricity fee:0.2USD per cup
material cost:1 USD per cup
operating cost:0.1+0.2=0.3 USD/cup
Net profit of NS3000MAX-1 orange juice per cup:3-1-0.3=1.7 USD/cup
daily sale/set
net income
daily income
monthly income
yearly income


profit analysis (per set)

30 Cups

1.7 USD

51 USD

1530 USD

18360 USD
60Cups
1.7 USD
102 USD
3060 USD
36720 USD

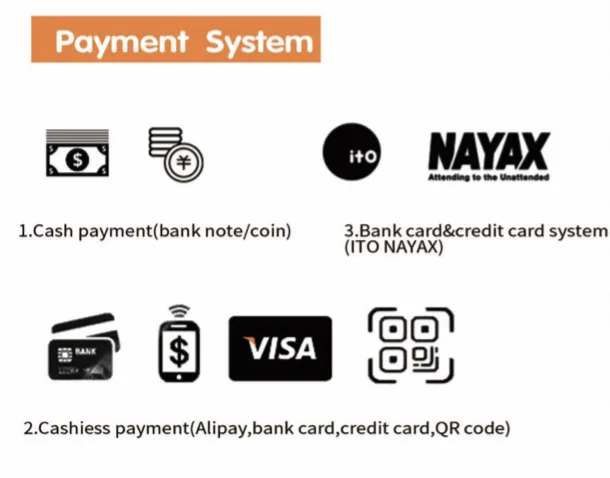

Custom Payment System

Our advanced payment systems take it all: mobile devices (NFC), credit cards and good ole fashioned cash and coins.

Data Synchronization And Remote Control

These are some seriously smart machines. Which means we're remotely monitoring everything so you don't have to. Machine in trouble? Oranges low? We stay in the know, on the go!

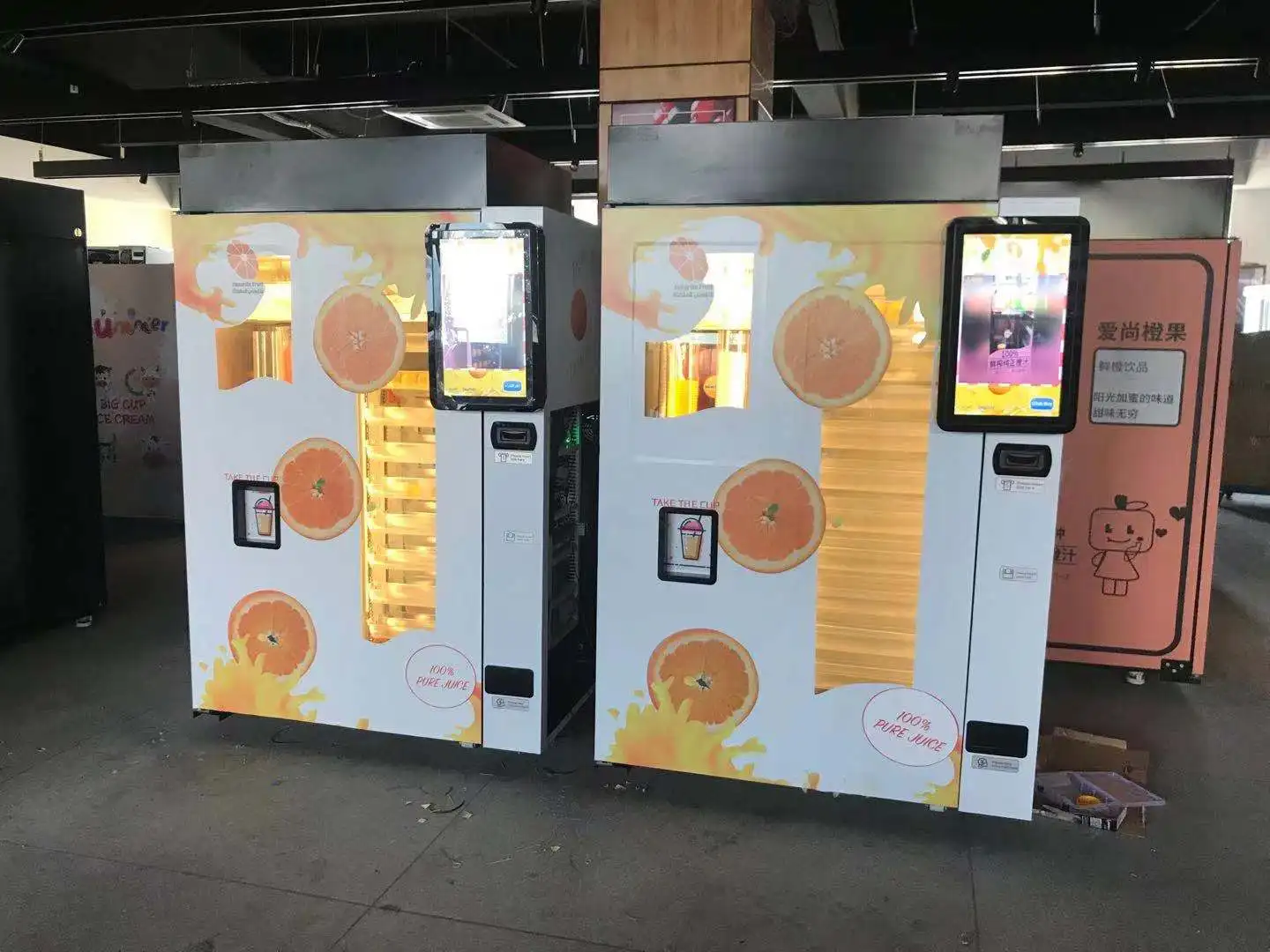

All-New Display Mode

Cause the New display mode, the storage time of oranges will be longer. it will also be more attractive.

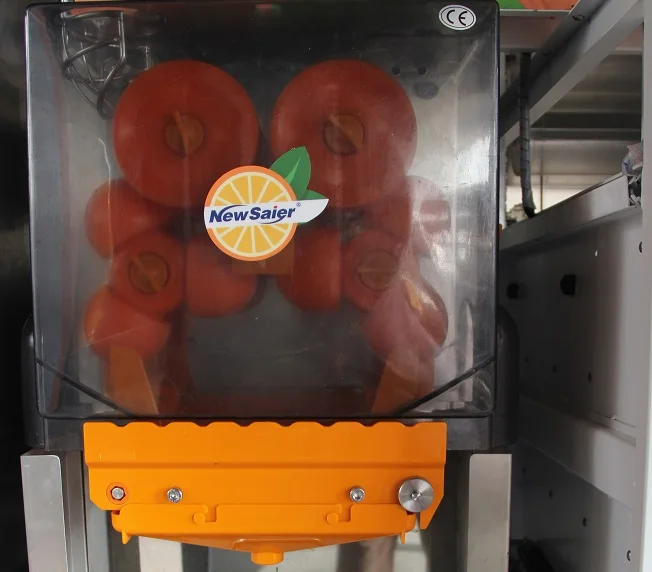

Juicer Structure

The juicer structure is made by ourselves, which have been produced for over ten years. So it will be more stable.

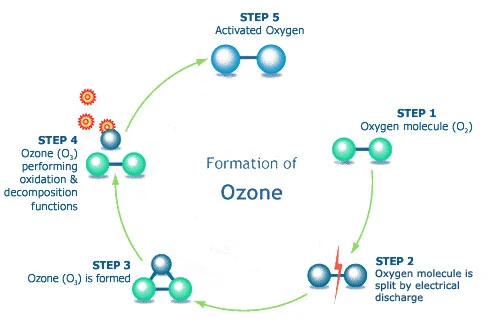

Automatic ozone sterilization

Provides integral sterilization function inside the machine to ensure food safety

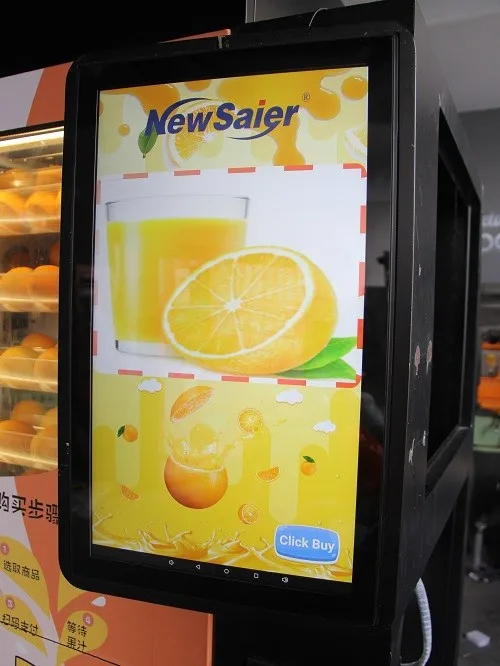

Custom  touch screen

The screen size is 23.6 inches, and customers can set the display content on the screen.

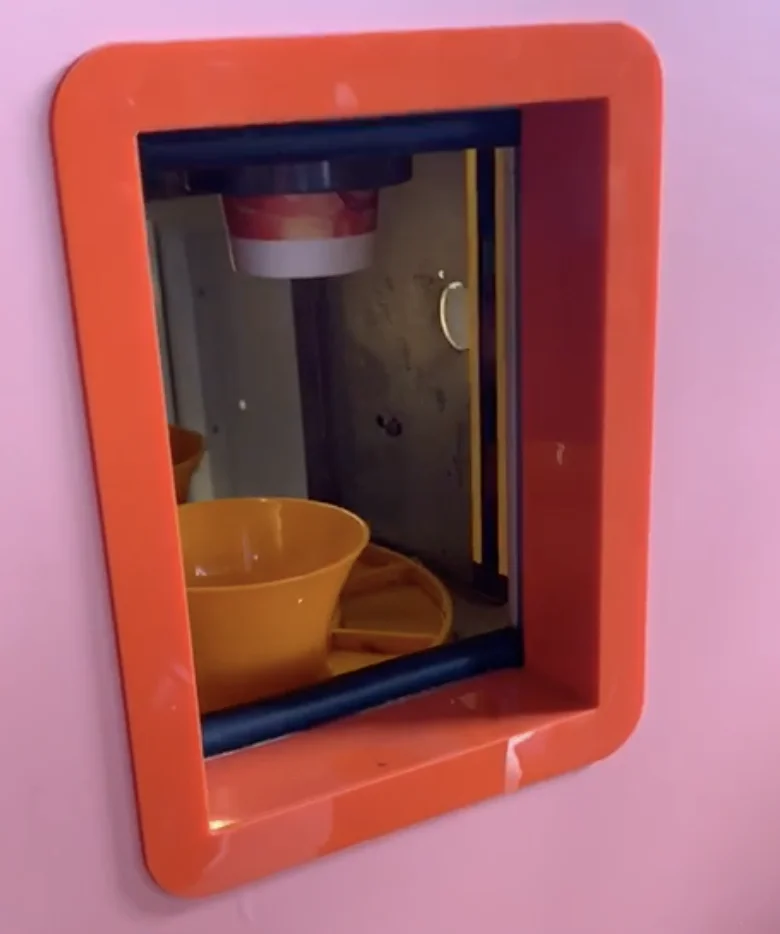

Pick-up port with automatic lifting door

We use a grating sensor to control the opening and closing of the lifting door to prevent pinching the customer's fingers.

Accessory brand

We use the world famous Accessory brand, the modem brand is Huawei, the compressor brand is Embraco.

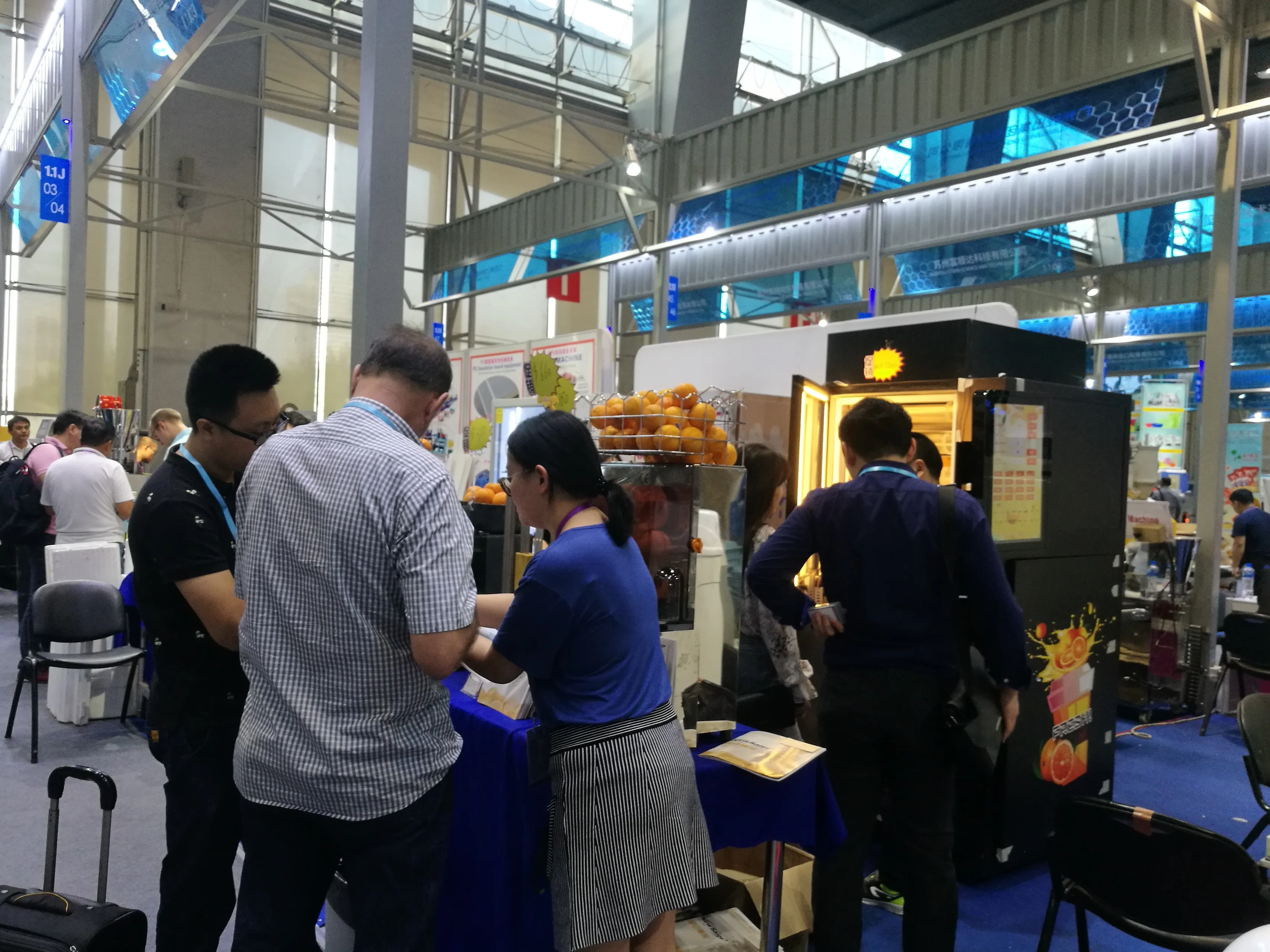

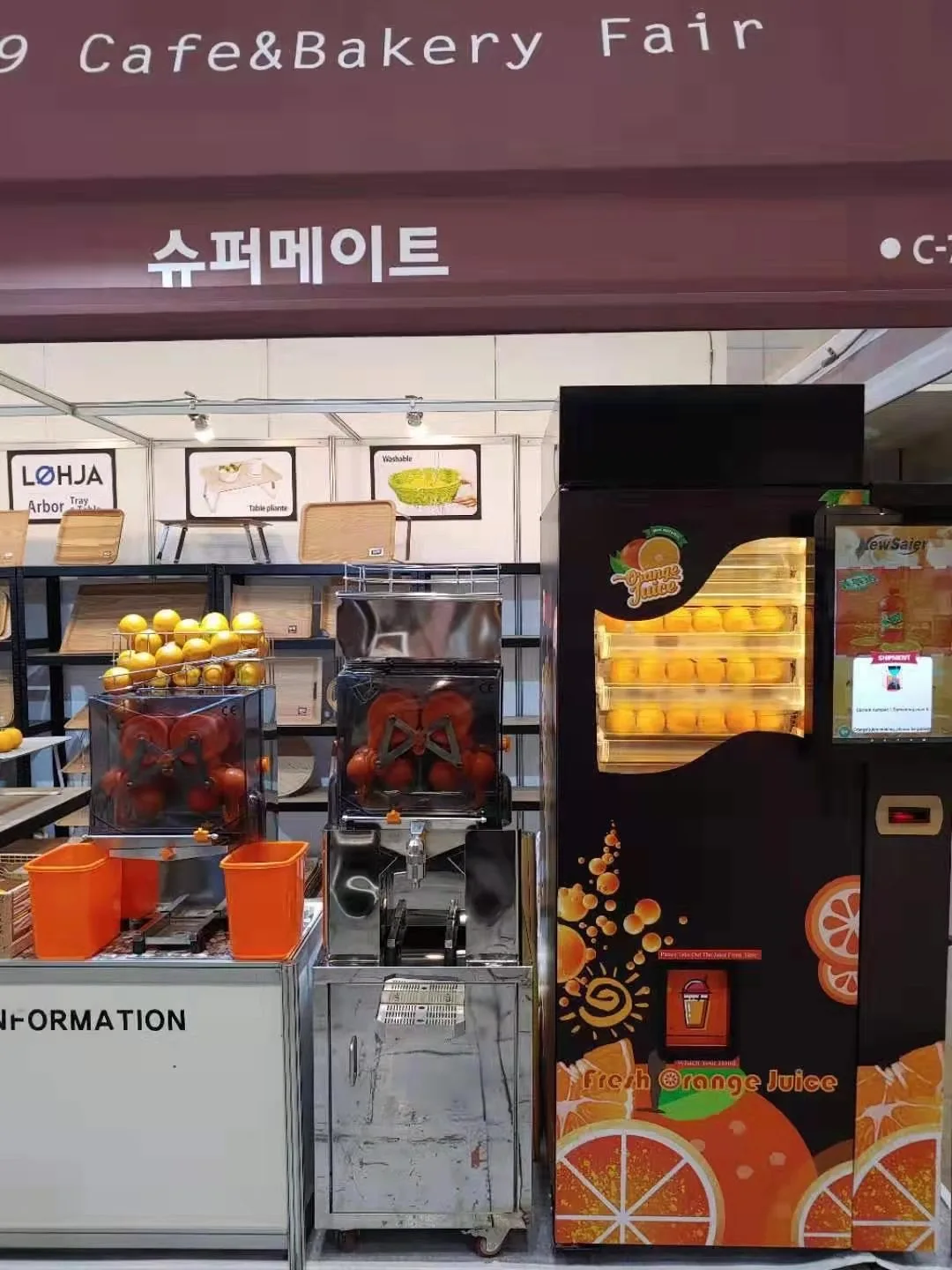

Photos from major exhibitions

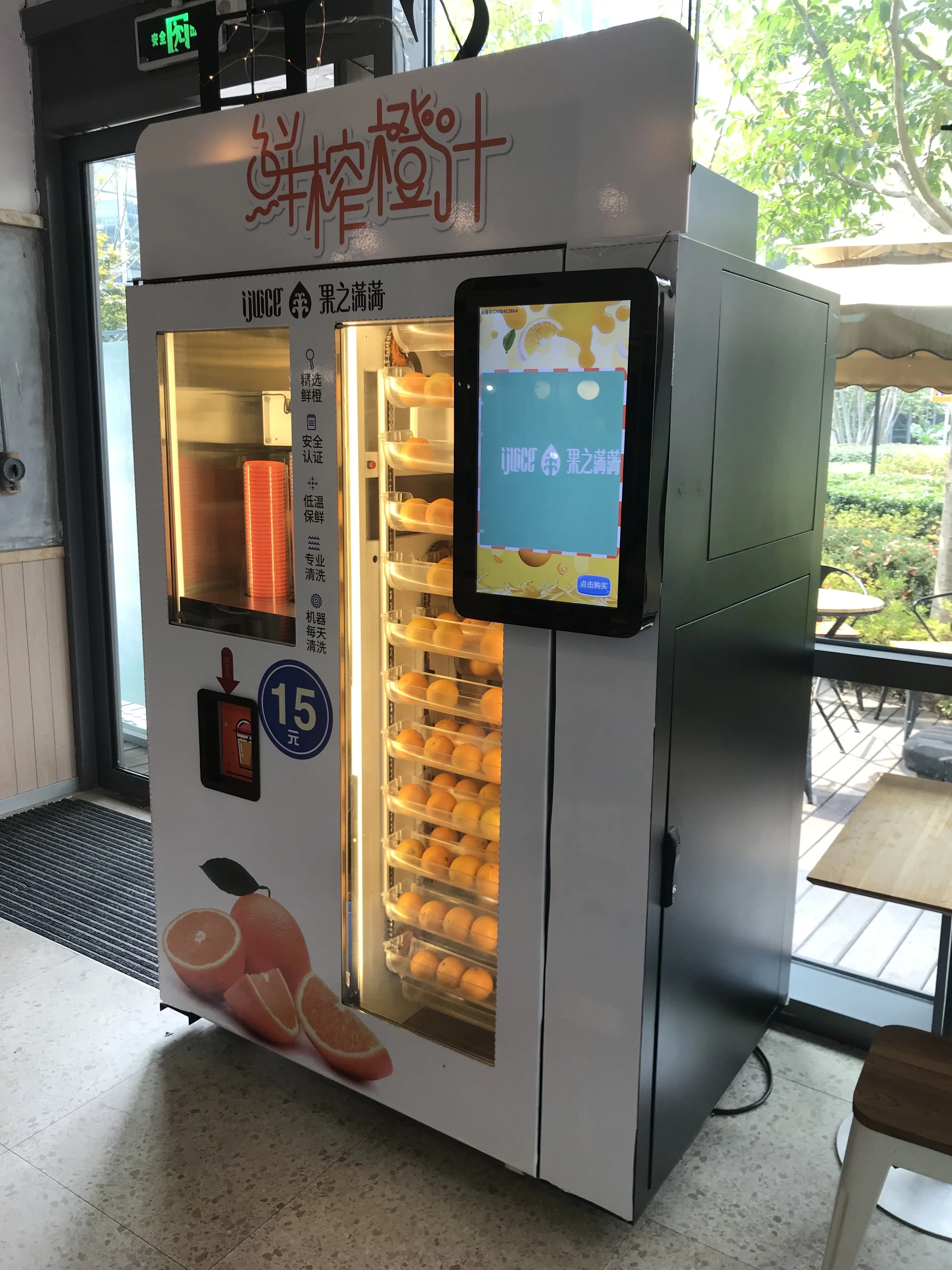

Application Site

Our machines are perfect for hospital department store , amusement park, university train station, and airport.The self serves machine will juice 40 oranges per minute.  As with our standard machine, we can build it into your existing counter or develop a bespoke unit to your exact requirements. The juicing components are all dishwasher safe for easy cleaning.

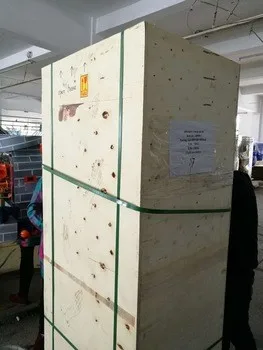

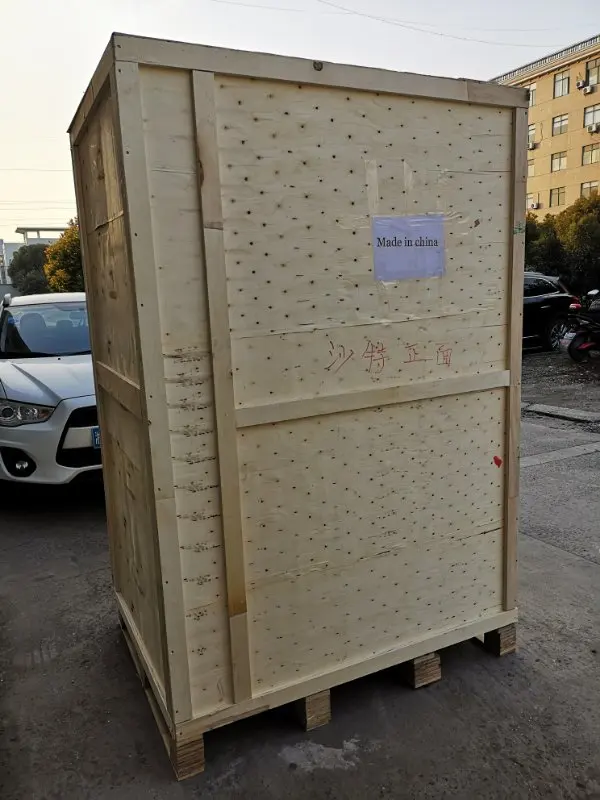

Packing & Delivery
Certifications

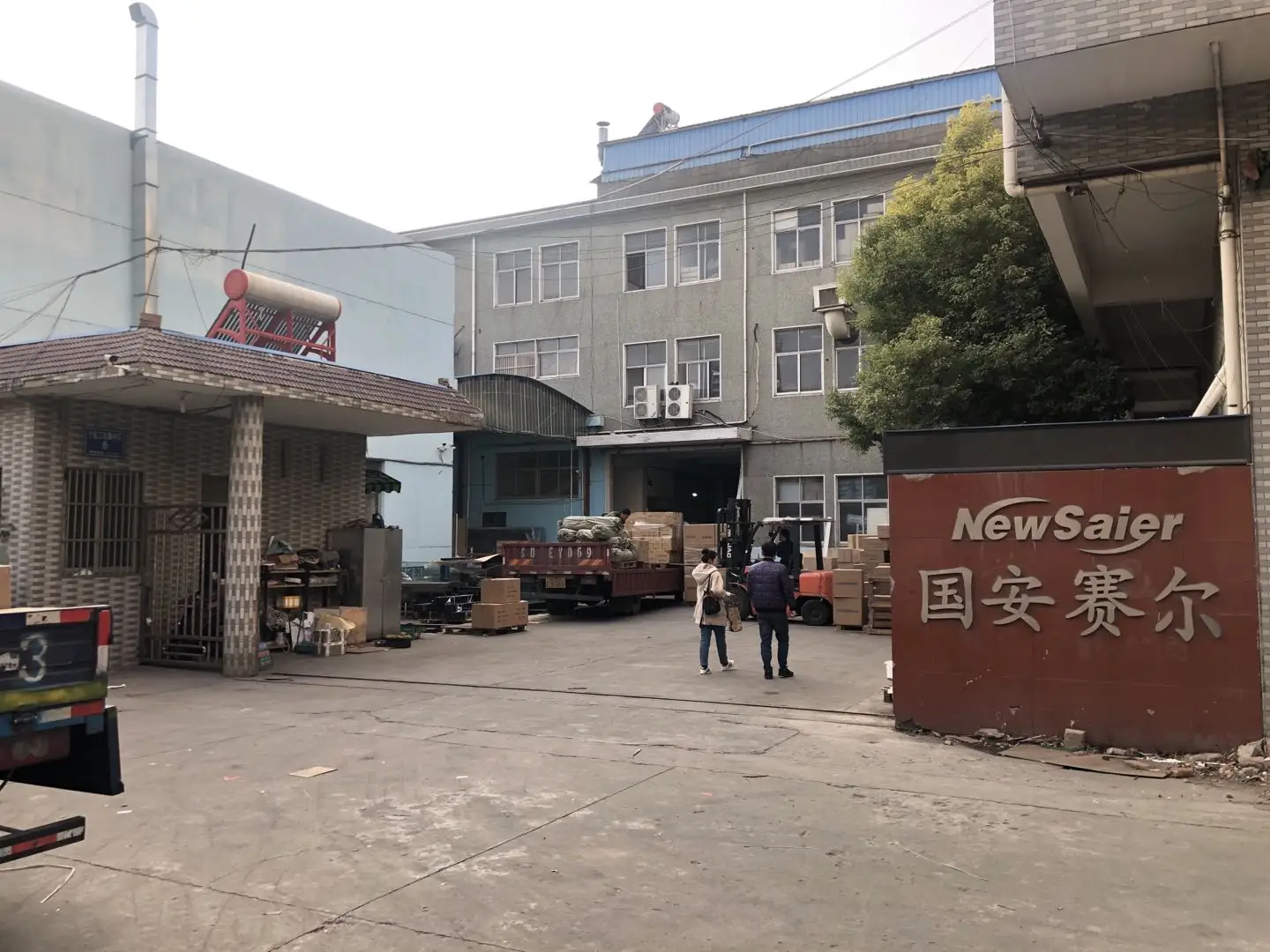

Our Company

10000 sq.m of facilities,
Adapted warehouses to offer the best service
740 sq.m of offices with highly-qualified professionals.


Mission and vision
The desire that guides and encourages New Saier to continue with its work day after day is to become a national and international benchmark in the design, manufacture, and marketing of the best quality juice extraction systems.

Our Service

1. We have more than 10 years' experience in manufacturing food processing machines.

2.Superior quality, competitive price, Timely delivery are our service purposes.

3.Warranty: one year guaranty, life-time technical support, some parts free.

4. Give your machine's details and video to help you use the machine better.

5. Our factory is equipped with the most advance machineries available. You can rely on us as the machinery specialist.

6. We can send our engineer abroad to training customers to operate the machine,The relevant costs are borne by the customer.

7. After Sales Service: We offer Preventative Maintenance and After Sales Service.

FAQ

1. Are you the OEM factory?


Yes, our factory is located in Niutang, Changzhou, Jiangsu, and can send Alibaba official certification video.


2. What fruits can the machine squeeze?


Orange, lemon, pomegranate, grapefruit and other citrus fruits with a diameter of 40-80


3. How long is the product warranty period? What if the accessories are broken? What are the spare parts?


The whole machine warranty is one year and the motor is 5 years. Free accessories during the warranty period.Each

machine is given a set of free accessories, including a pair of kicker, two fuses, two wrenches, and one screwdriver.


4. How to clean the machine? How often shall I need to clean?


The accessory can be removed and cleaned, and the disassembly video can be sent. Wash once a day.


5. What are the certifications for the product?


We have ISO9001, CE, CB, ETL, SGS,KC,EMC certifications.


6. Production cycle and delivery time?


1-2 sample machines are available in stock, and it takes 7-15 days for more than 5 orders.


7. How about regular packaging?


Small machines less than 60Kg will be packaged in carton with a tray. Big machines larger than 60 kg will be packaged in a fumigation-free wooden box.
